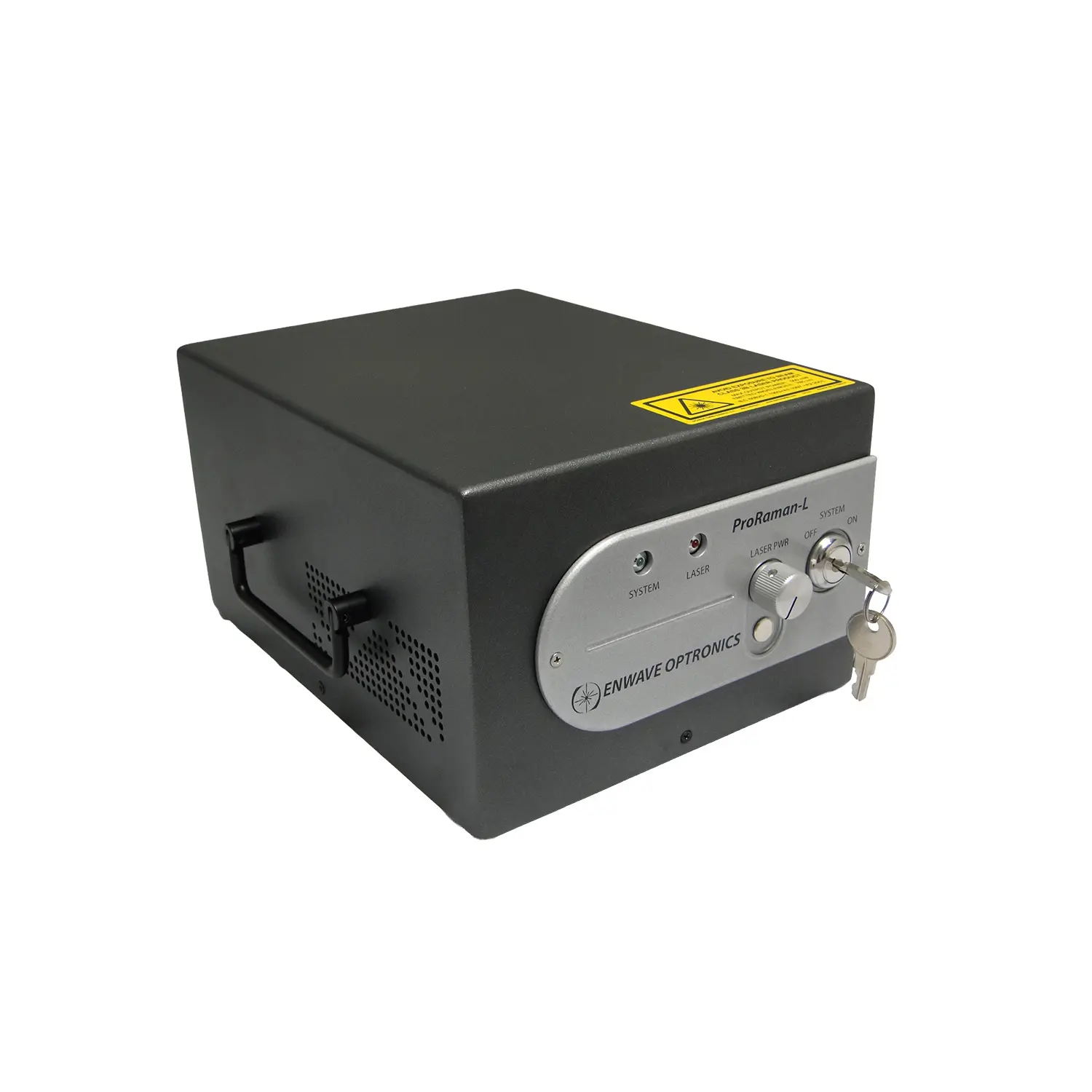

Compact Raman Spectrometer Pro

  • Extremely compact design & cooled CCD detector (down to -60 °C)
  • 532 nm or 785 nm laser options for a wide range of samples
  • Fiber optic sample head technology - contactless and fast measurements
  • User-friendly RamanReader software for analysis and evaluation
  • Accessories such as liquid cells, contact probes and microscope adapters available for expansion

Contact person: Mr. Michael Zerbin

The compact Raman spectrometer Pro from the EZRaman family combines state-of-the-art spectroscopy technology with an extremely compact and robust housing. The powerful CCD detector, cooled down to -60 °C, ensures precise spectral data with low signal noise - even with weak Raman signals, this feature proves to be decisive. As a result, the Raman spectrometer Pro enables highly sensitive analyses in various fields of application such as materials science, analytical chemistry and pharmaceutical quality control.

Equipped with flexibly selectable lasers (532 nm or 785 nm), the device adapts ideally to different sample types. The optionally available fiber optic laboratory sample head allows direct access to samples - whether liquids, solids or powdery materials - without time-consuming sample preparation. In addition, the RamanReader software included in the scope of delivery impresses with its user-friendliness and extensive evaluation options for routine and research applications.

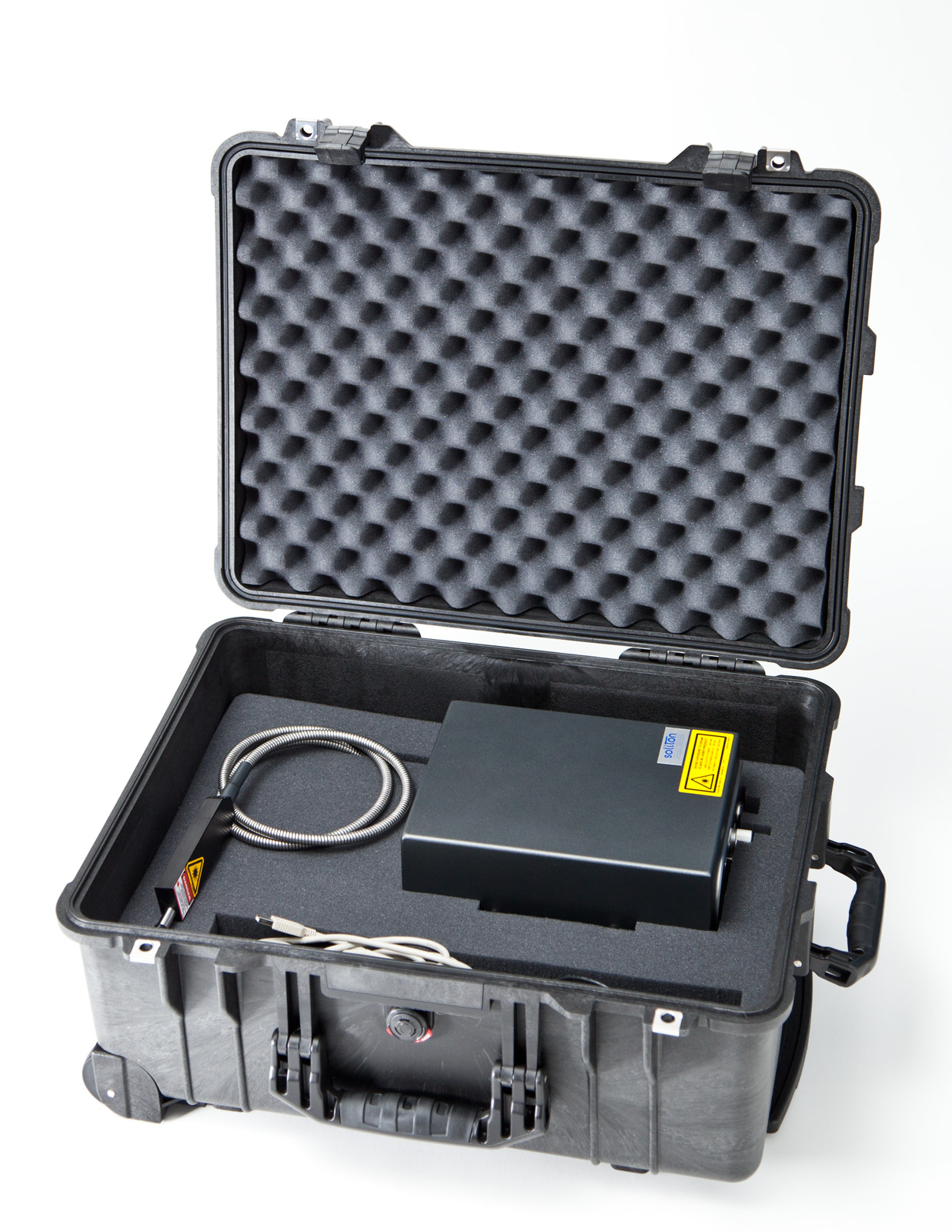

Thanks to its compact size and versatility, the Raman spectrometer Pro is particularly suitable for mobile use and changing analysis locations. With additional accessories such as liquid cells, contact probes (e.g. WD3, WD10) and microscope adapters, the system can be adapted precisely to the respective requirements. It therefore reliably supports inline process controls, polymorphism studies or pharmaceutical drug analyses.

Overall, the Compact Raman spectrometer Pro an optimal combination of precision, flexibility and space savings - for laboratories, production environments and research facilities that want to implement sophisticated Raman analyses efficiently and reliably.

Specifications

  • Best signal-to-noise characteristics of any laboratory Raman instrument
  • Precise, fast, repeatable Raman measurements
  • Highly sensitive Raman system for laboratory and chemical process monitoring
  • HRP-8 high-throughput laboratory probe (outer diameter > 8)
  • Best performance/cost ratio
  • Compact, reliable and easy to use

Applications

  • Online process control, including PAT measurements: structure determination, polymorphic forms, hydrogenation, aqueous solution measurement, phase transition and reaction monitoring
  • Manufacturing of medicinal products and pharmaceutical products, including freeze-drying, fermentation, distribution of medicinal products in products such as skin patches, formulation, mixing and headspace analysis
  • Chemical industry: polymerization and synthesis progress
  • Geology, mineral and gemstone identification, pharmacy, production of carbon nanotubes and graphene
  • biology
  • solar cells
  • Paper and pulp
  • Many other potential uses and applications

Accesories

  • Sample holder for measuring liquid samples in vials or cuvettes
  • Probe holder XYZ precision stage for fine adjustment of sample measurements
  • Pre-adjusted lens tube for measuring solid samples on contact
  • Lens tube WD3 - working distance of the lens tube 3mm; NA = 0.55
  • Lens tube WD10 – lens tube working distance 10mm; NA = 0.25
  • MVW µV-785 µViewer converter with 1.3M pixel CMOS camera and LED inline illumination
  • Lens tube with spacer for large beam diameter
