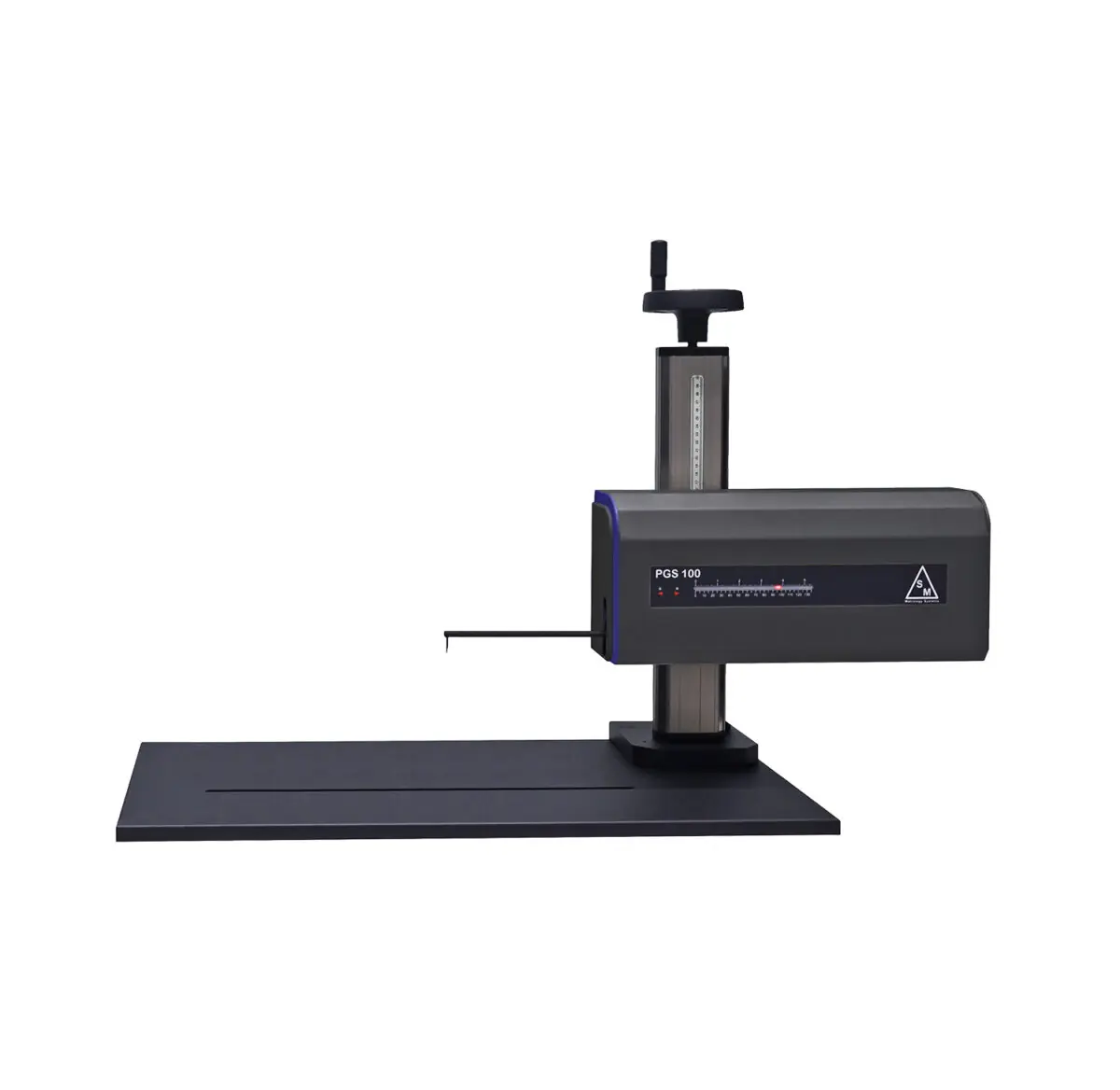

The PGS100 contour measuring device from SM Instruments captures 2D profiles and contours in an extremely simple and intuitive way.

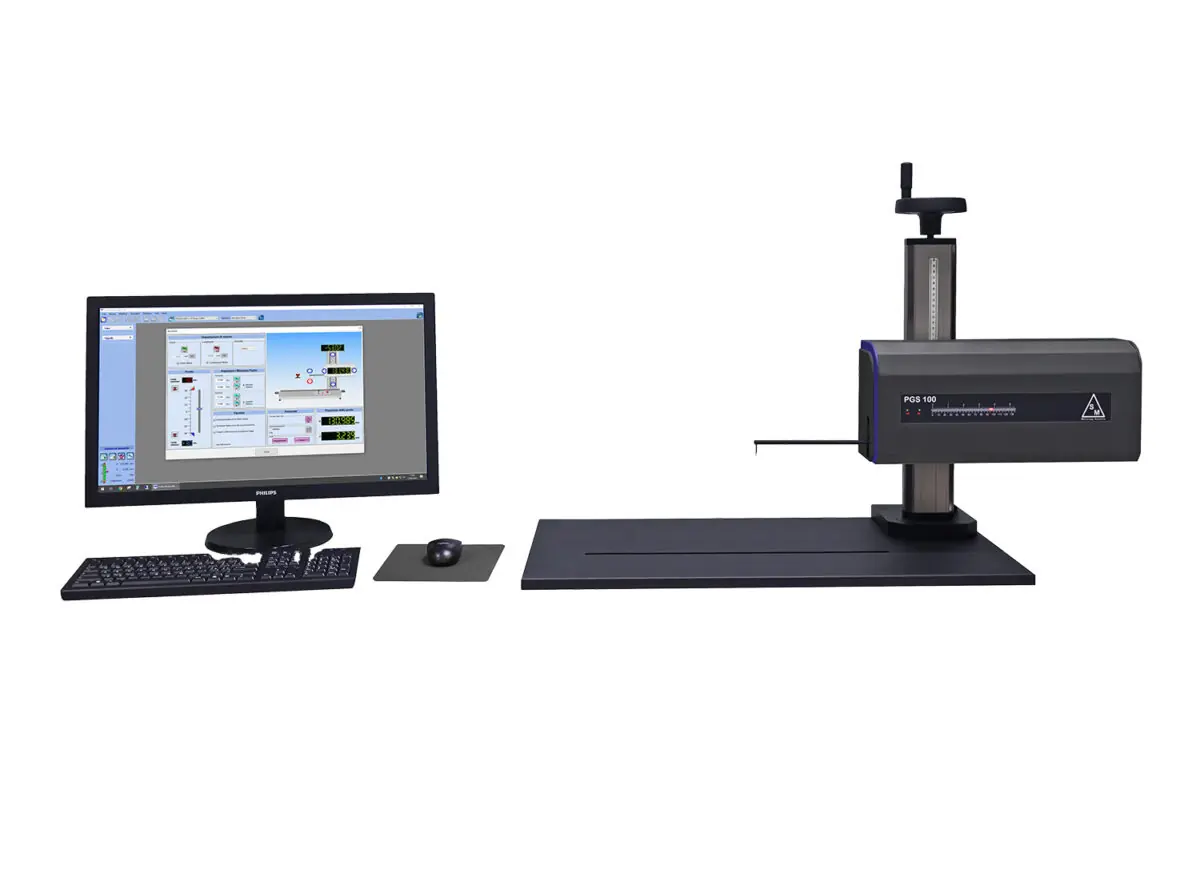

It enables measurements with a usable measuring range of 130 mm in length and 50 mm in height. The software is not only very easy to use, but also intuitive. In addition, the Profile Studio software program is equipped with all the necessary CAD functions. These are required for dimensioning in the measurement report and for reliable control of your parts. In addition, programs for automation, which are used for series measurements, for example, can be created quickly and easily.
The PGS100 comes standard with a work table with a "T" slot and a 32 mm measuring probe. These components can be supplemented with suitable accessories, such as the "positioner" with 3 or 4 degrees of freedom and the precision vice for fixing parts. The profilometer is calibrated using software and a special calibration probe.
The measuring device for determining contours combines a very simple, cost-effective approach with the hand-crank adjustable column, the wide range of software functions and the accuracy of a complete profilometer. All contours can be recorded and evaluated using various probes.
