Universal Roughness Measuring Device

  • Universal roughness measuring device combinable with various samples
  • Handheld keypad for universal accessibility (TL7)
  • as a roughness and waviness measuring system (TL90)
  • Rotationally symmetric roughness measuring system for measurements along curve 125mm (Rotarix)
  • resolution 0.001µm
  • Cut off: 0.25 – 0.8 – 2.5 – 0.8 mm
  • Max. measuring distance depending on system: 16mm
  • Meets all common standards (ISO, DIN)

Contact person: Mr. Michael Zerbin

The Universal Roughness Measuring Instrument RTP80 from SM Instruments offers a reliable and versatile solution for characterizing surface roughness and waviness. In addition, thanks to its user-friendly operation and robust construction, it enables efficient use in production environments and metrology laboratories. In addition, the device combines intuitive control via a 5.7-inch touchscreen with flexible measurement options for a wide range of applications.

Flexibility through modular measuring systems

The RTP80 can be combined with various measuring units to specifically address specific requirements. This allows users to make the most of the device's versatility:

  • TL7 key unit: This compact unit is perfect for mobile roughness measurements in production. Users hold the unit manually to the measuring point and benefit from a cable length of up to 2 m, which offers additional flexibility.
  • TL90 measuring system: With this system, users can carry out precise measurements of roughness and waviness. They position the sample along a rail and place it precisely on the measuring part. The travel range allows a movement of up to 110 mm.
  • Rotarix System: Users use this system for rotationally symmetrical measurements on inner and outer diameters. It is available in versions for diameters up to 55 mm and 125 mm.

Diverse areas of application

The Universal Roughness Measuring Instrument RTP80 offers a wide range of possible applications. It is ideal for quality control in production, for precise metrological analyses and for measuring complex components. It also delivers reliable results under demanding conditions. In addition, the intuitive operation makes it easier to use and reduces the amount of training required.

High-precision technology for best results

Thanks to innovative functions and a well-thought-out design, the RTP80 enables the highest precision in measurement:

  • The integrated thermal printer outputs results directly, while the measurement data can be processed simultaneously with software.
  • Users benefit from 54 supported measurement parameters such as Ra, Rz and Wz to perform detailed analyses.
  • The Calibration is software-controlled and is based on the industry standards according to DIN EN ISO/IEC 17025.
  • With a variety of measuring probes and configuration options, the device remains flexible and adaptable.

Individual adaptation and advice

In addition to the high standard performance, the RTP80 allows for tailor-made adjustments for specific requirements. Benefit from the versatility of the device and have it adapted exactly to your needs. Please contact us for further information or a non-binding consultation.

examples

  • Defects on surfaces
  • Roughness on polished surfaces
  • Roughness in openings
  • Roughness at the base of the tooth
  • wave side measurement

Options

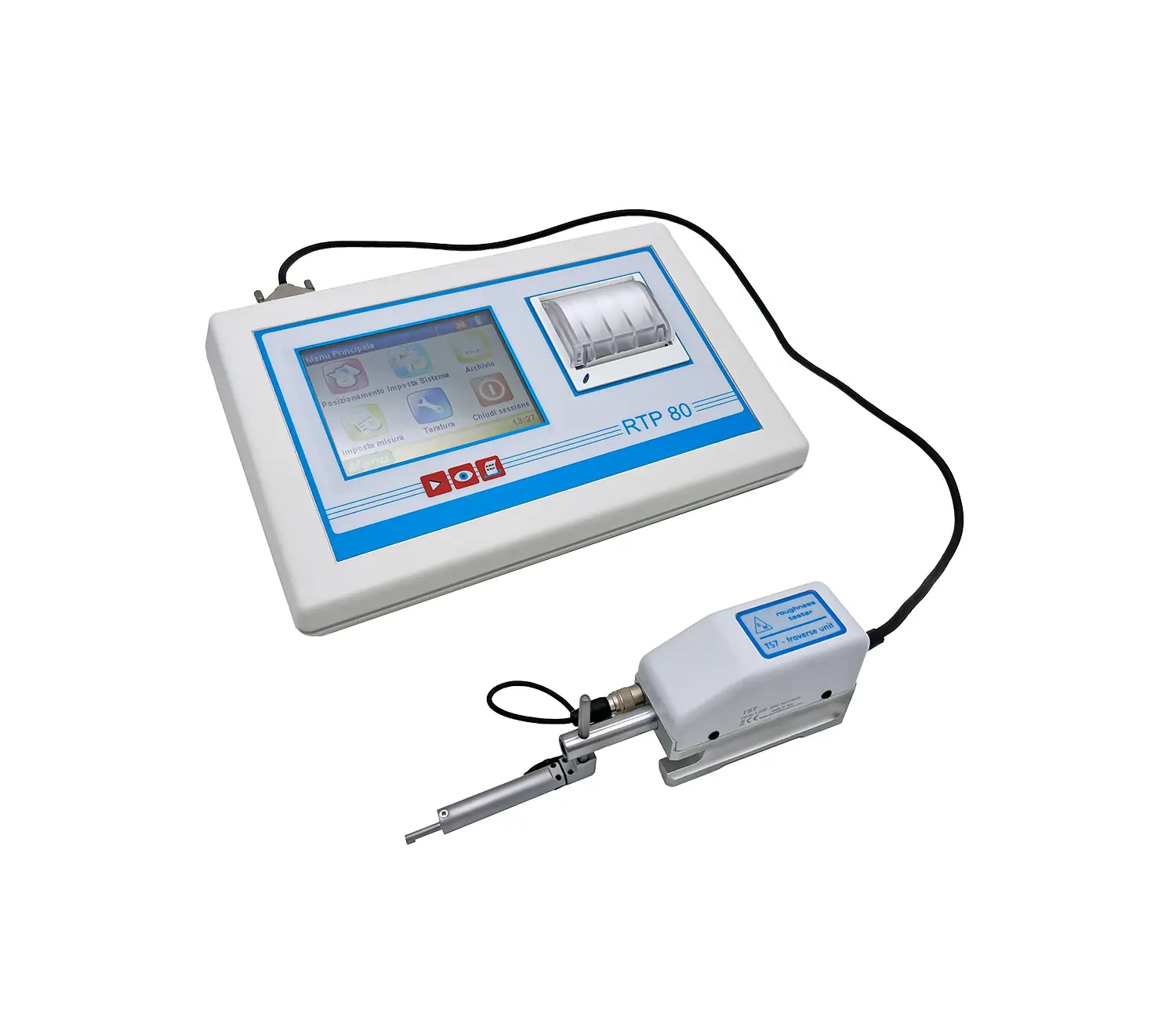

  • Handheld keypad unit TL7

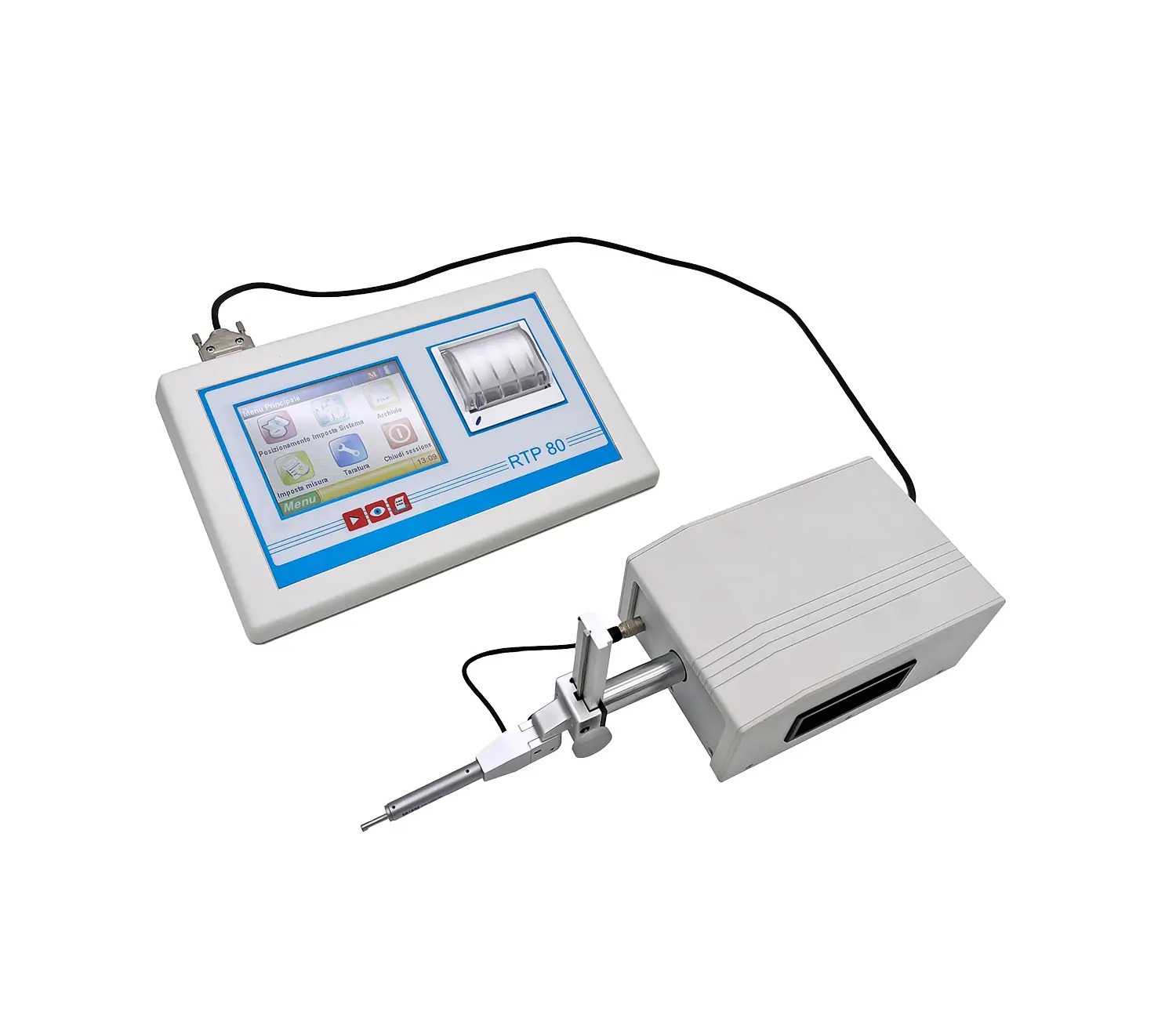

  • roughness and waviness measuring system TL90
  • Rotarix
  • granite and aluminum stand
  • Printer
  • different stylus for roughness and profile measurements
  • Printer (Bluetooth)

Video

data sheet

RTP80 – Universal Roughness Measuring System

RTP80 – ROTARIX
