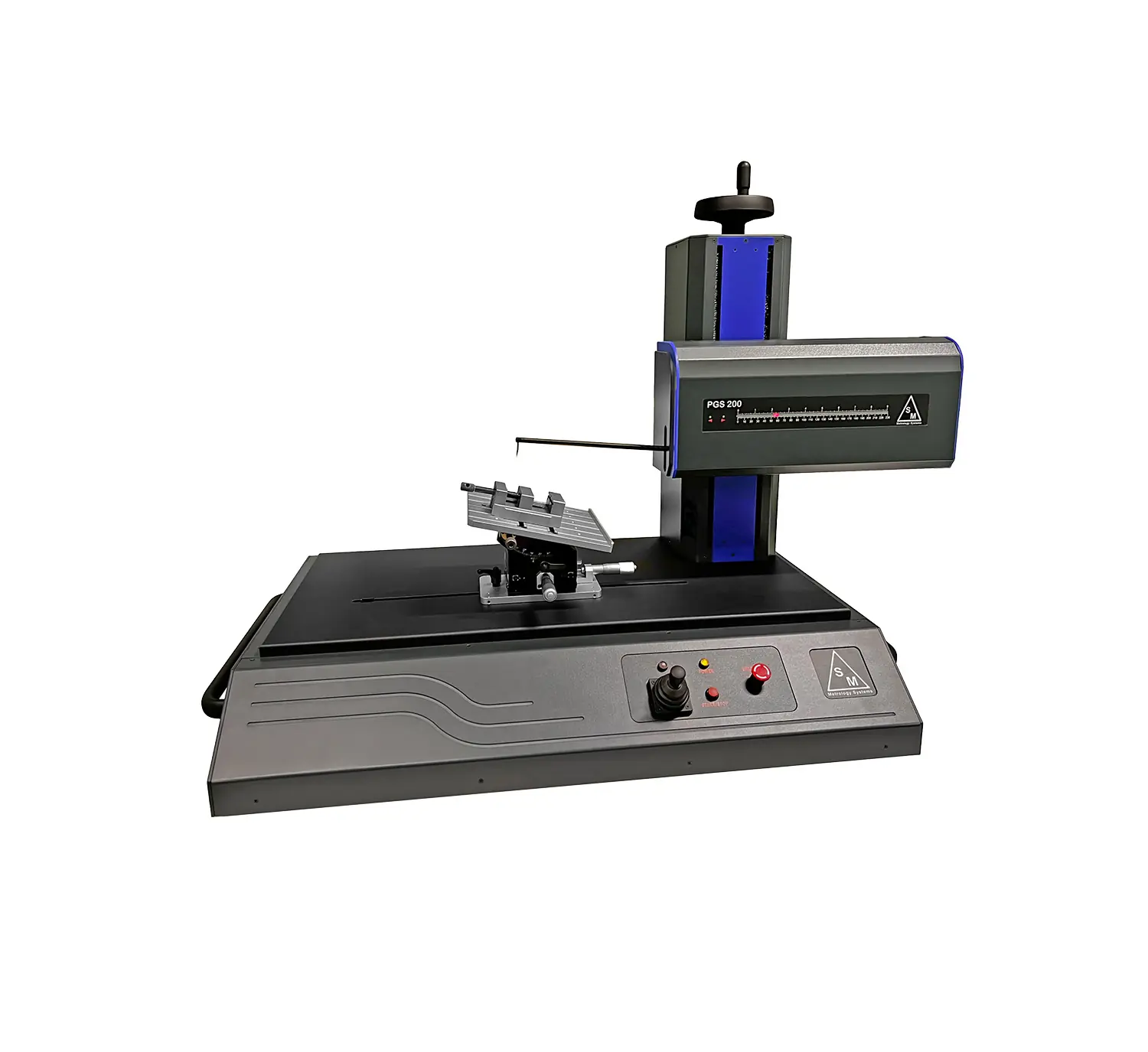

The PGS200 contour measuring device from SM Instruments records 2D profiles and contours in an extremely simple and intuitive way. Compared to the smaller PGS100 version, the column can also be controlled in the Z axis using software. In addition, the entire column unit can be moved or the probe unit can be swiveled. This enables extensive measurements thanks to the large variety of probes and measuring arms.
A usable measuring range of 220 mm in length and 50 mm in height allows for very good accessibility. The profilometer software is not only very easy to use, but also intuitive. In addition, the Profile Studio software program is equipped with all the necessary CAD functions. These are required for dimensioning in the measurement report and for reliable control of your parts. In addition, programs for automation, which are used for series measurements, for example, can be created quickly and easily.
The measuring device for determining contours has a work table with a "T" slot and a 32 mm measuring probe as standard. Suitable accessories such as the "positioner" with 3 or 4 degrees of freedom and the precision vice for fixing parts can be added. In addition, the device is calibrated using software using a calibration standard in accordance with the current industrial standards (DIN EN ISO/IEC 17025).
