Compact optical measurement technology for precise quality control

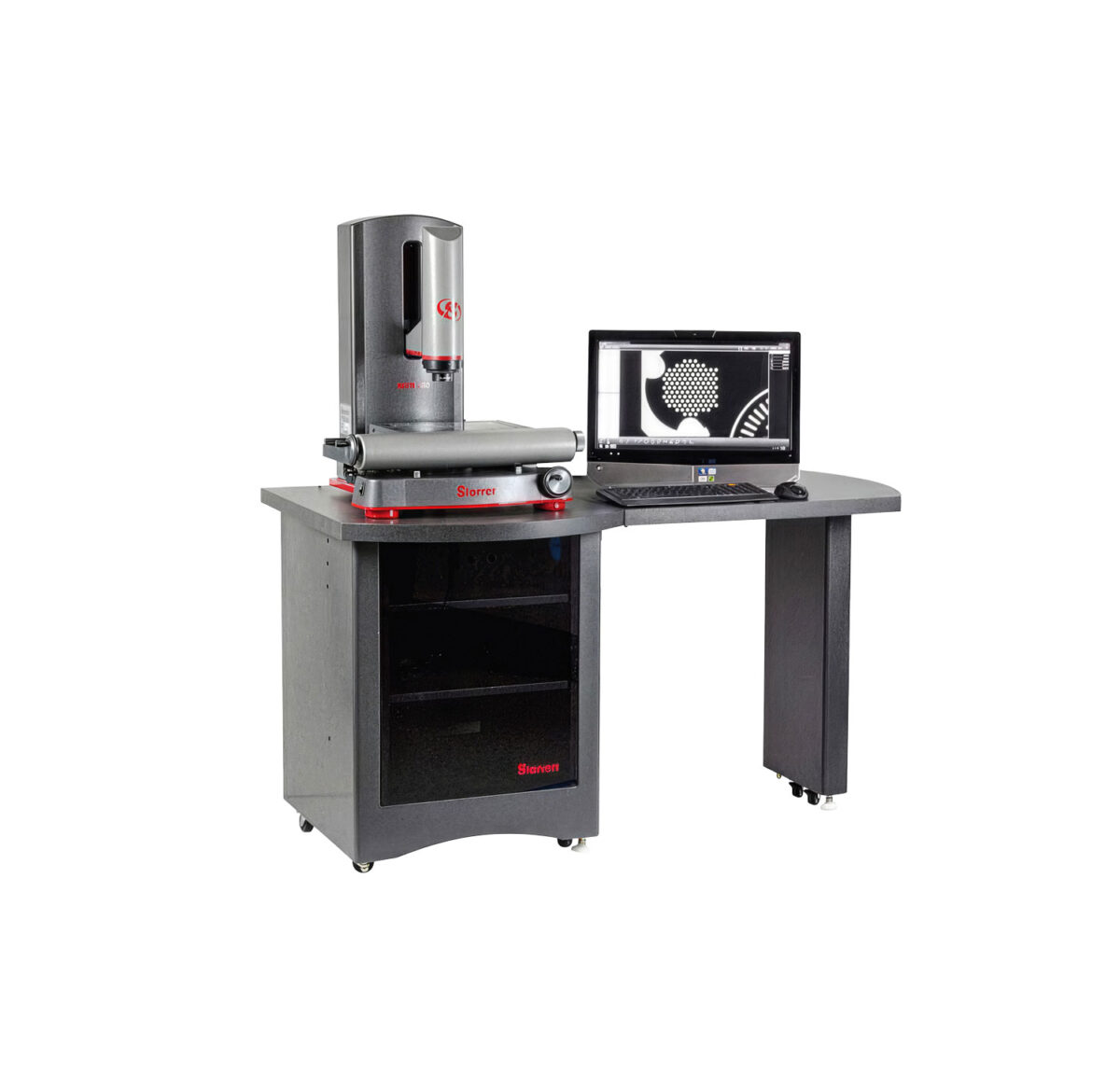

The MVR 200 - Manual optical inspection system from Starrett is a compact and powerful solution for industrial quality inspection. Especially for fast, repeatable measurement tasks, this manual vision system impresses with its high reliability and intuitive operation. This makes the system ideal for production environments, inspection rooms and incoming goods inspections where efficiency and accuracy are equally important.
While complex automated systems often require a higher level of integration, the MVR 200 - Manual Optical Inspection System offers a flexible and economical alternative for precise 2D measurements. At the same time, it enables stable and reproducible quality control in daily use.
Robust construction for stable measurement results
The solid granite base forms the foundation of the system and ensures maximum stability and low vibration influences. As a result, the measuring accuracy remains consistently high even with regular use. In addition, precise linear rails ensure smooth and exact movement in the axes.
Particularly noteworthy is the motorized Z-axis, which enables convenient and controlled height adjustment. This allows different workpiece heights to be captured efficiently and focused precisely. The result is a clear, sharp representation of contours and surface structures.
With a maximum field of view (FOV) of 24 mm, components up to 200 mm in length can be measured. This means that the MVR 200 manual optical inspection system covers a wide range of applications in industrial metrology.
Intuitive operation with MetLogix™-M3 software
The integrated MetLogix™-M3 software provides a high-resolution live video image of the workpiece and combines this with digital measurement values and versatile geometry tools. This allows users to keep an overview of all measurement data at all times.
In addition, the image can be scaled via zoom in order to precisely evaluate even the smallest details. Measurements are carried out conveniently via the touchscreen by selecting the desired contour directly. This user-friendly workflow reduces training requirements and increases productivity at the same time.
Expandable equipment for flexible measuring tasks
The system can optionally be equipped with telecentric lenses to minimize perspective distortions and further increase measurement accuracy. Various accessories are also available to extend the range of functions and adapt them to specific inspection requirements.
The MVR 200 manual optical inspection system therefore offers a versatile solution for optical measurements, contour inspections and dimensional component analysis. Companies benefit from high repeat accuracy and efficient data acquisition, especially for recurring inspection processes.
For detailed technical information or an individual configuration, we recommend that you contact us personally. We will be happy to prepare a suitable offer for your specific requirements in the field of optical measurement technology and quality assurance.
