Powerful profile projector for precise 2D measurements

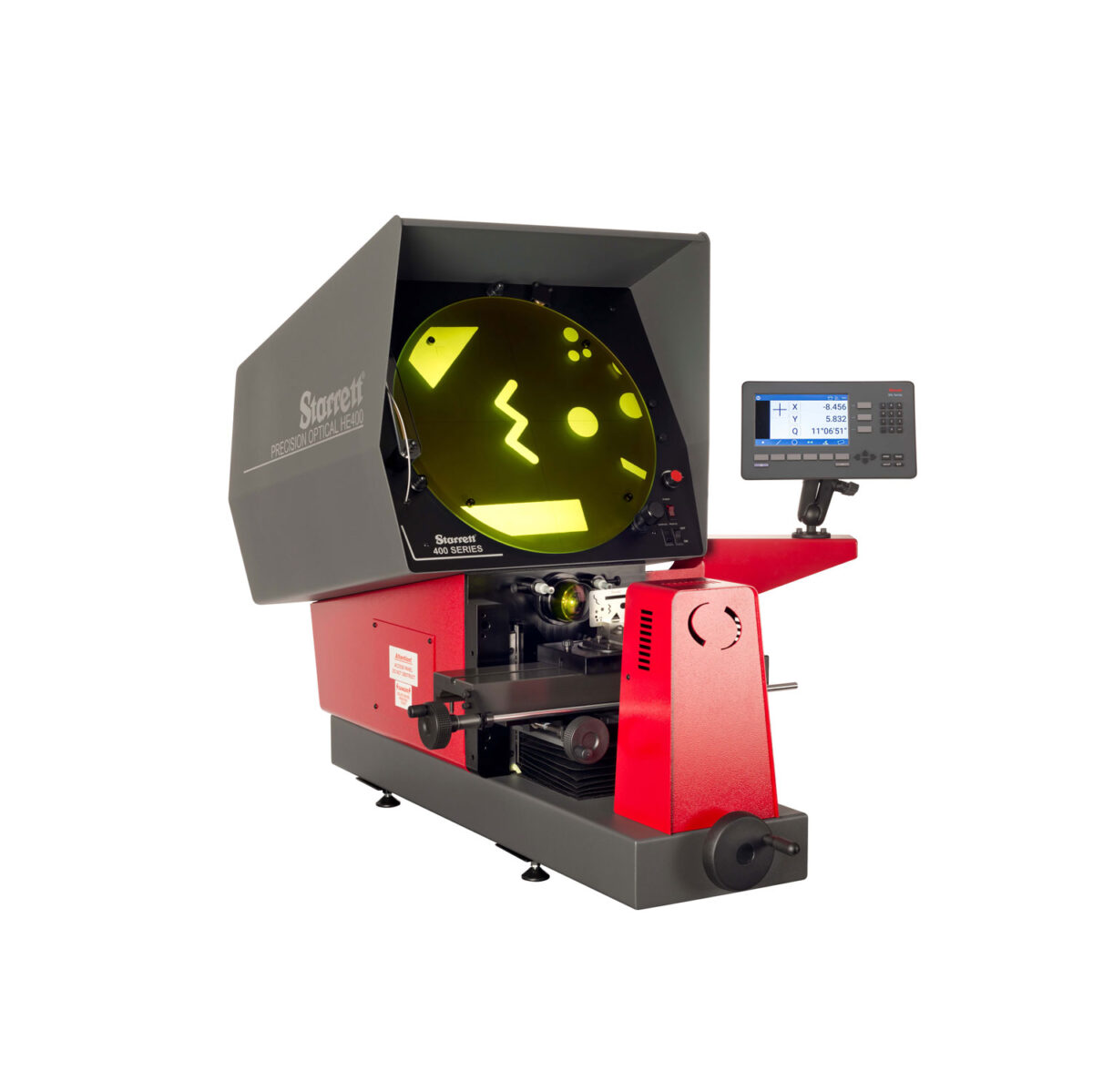

The HE400 - Horizontal measuring projector from Starrett is a versatile and economical profile projector for precise optical comparison and measurement tasks. Particularly in manufacturing, quality assurance and engineering, this system supports reliable 2D measurement technology with high repeatability. This makes the HE400 ideal for companies that value precise contour, radius and angle measurements.
With its generous 400 mm projection screen, the HE400 - Horizontal Measuring Projector provides clear, high-contrast projection images. This means that even fine contours and complex geometries can be precisely analyzed and compared with drawings or overlay templates.
400 mm screen for detailed profile and angle measurements
The large screen enables convenient evaluation of profiles, distances and angles. Thanks to the precise mechanics and finely tuned guide systems, the projector ensures stable positioning of the workpieces. This produces reproducible measurement results, even for regularly recurring inspection tasks.
In addition, the integrated Q-axis angle reading supplements the classic profile measurement with precise angle analyses. The HE400 horizontal measuring projector therefore offers a decisive advantage in optical metrology, particularly for components with defined bevels or complex cutting geometries.
Robust construction and powerful LED lighting
The durable and robust design ensures high stability in daily use. As a result, the measuring accuracy remains constant even under production conditions. At the same time, the solid construction minimizes external influences such as vibrations.
The integrated LED profile and surface lighting creates strong contrasts and uniform illumination. This means that even complex shapes or fine structures are clearly visible. The LED technology is also characterized by a long service life and low maintenance requirements.
Flexible magnification and digital measurement evaluation
Another advantage of the HE400 - Horizontal Measuring Projector is the flexible lens selection. Thanks to the bayonet lenses with magnifications from 10× to 100×, the system can be optimally adapted to different component sizes and detail requirements. As a result, the projector covers a wide range of applications from small precision parts to larger workpieces.
The integrated MetLogix digital indicator enables simple and efficient measurement data acquisition. Digital measured values can be read and documented quickly, which increases process reliability in quality assurance.
Efficient quality assurance with the HE400 - Horizontal measuring projector
While manual measuring methods are often time-consuming, the HE400 enables fast, non-contact and objective inspection of contours and angles. As a result, companies benefit from shorter inspection times, reduced error rates and sustainable process optimization.
For further technical information or individual advice, we recommend contacting us directly. We will be happy to prepare a customized offer for your specific requirements in the field of profile projectors, optical measurement technology and industrial quality assurance.
