CO2 laser: AL series





  • Tunable grid
  • Various isotope gas fillings possible
  • Ultra stabilized
  • Active Q-switching for ns pulses
  • For applications such as optically pumped terahertz sources and ultra-cold atom traps

Contact: Thomas Walter

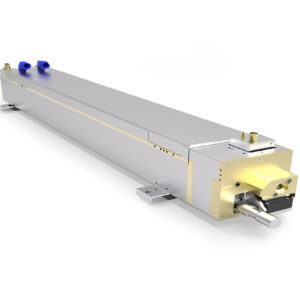

CO2 Laser AL50 – High-performance laser for cutting-edge industrial applications

Maximum performance through true cylindrical waveguide technology

The CO2 Laser AL50 is the most powerful system in its class and is based on proven technology with true cylindrical waveguides – a standard in the professional laser industry. This laser system was specifically developed for extremely demanding applications where absolute reliability and maximum uptime are required.

Optimized for continuous operation in critical applications

Due to its robust construction, the CO2 Laser AL50 ideal for use in highly sensitive production environments such as Semiconductor manufacturing, where it reliably delivers the highest precision even in 24/7 operation. At the same time, it is a valuable tool for research institutions and development centers that rely on consistently high laser power and consistent beam quality.

Application areas of the CO2 laser AL50

In addition to the semiconductor industry, the CO2 Laser AL50 also in areas such as Materials research, the Micromachining, the precision mechanics as well as in Laboratory applications Thanks to its modular expandability, the laser can also be precisely tailored to customer-specific requirements.

Technical highlights of the CO2 laser AL50

With its uncompromising design, the AL50 sets new standards in industrial laser technology. Key advantages include:

  • High beam quality and energy efficiency

  • Stable performance in long-term operation

  • Low-maintenance design for maximum availability

  • Precise controllability even during complex processing steps

Thanks to the cylindrical waveguide technology, a uniform power density is guaranteed across the entire beam area – a decisive advantage for particularly uniform material processing.

Wavelength

9200nm, 10640nm, 10800nm

Wavelength tunable

9200 – 10800nm

Average power:

10W, 20W, 50W

Pulse duration

250ns, cw

laser type

gas laser
